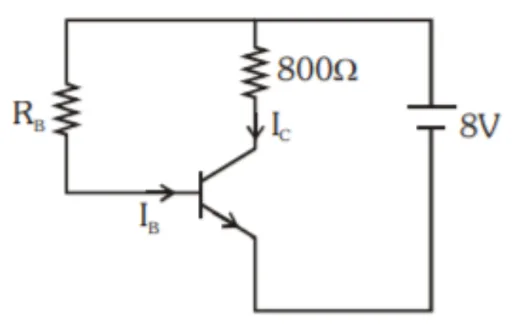

A n-p-n transistor is connected in common emitter configuration (see figure) in which collector voltage drop across load resistance (800 ΩΩ) connected to the collector circuit is 0.8 V. The collector current is

(1) 0.2 mA

(2) 2 mA

(3) 0.1 mA

(4) 1 mA

1 Answer

0 votes
by (98.9k points)
selected by

Best answer

Ans: (4) 1 mA

Sol. Voltage drop across load resistance,

VL = ICRC

0.8 = IC × 800

IC = 1 mA
