Question

Two-point masses of 0.3kg and 0.7kg are fixed at the ends of a rod which is of length 1.4m and of negligible mass. The rod is set rotating about an axis perpendicular to its length with a uniform angular speed. The point on the rod through which the axis should pass in order that the work required for rotation of the rod is minimum is located at a distance of

(a) 0.42 m from the mass of 0.3kg

(b) 0.70 m from the mass of 0.7kg

(c) 0.98m from the mass of 0.3kg

(d) 0.98m from the mass of 0.7kg

Answer 1



Work-energy theorem,

     W_allforces​=\(1\over2\)Iw²

Given:  w  is constant

So required work done to be minimum implies that I must be minimum.

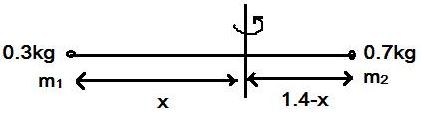

Let the rotational axis passes through O.

I=0.3(x²)+0.7(1.4−x)²

For I to be minimum,        \(dI\over dx\)​=0

⟹0.3×2(x)−0.7×2(1.4−x)=0

⟹x=0.98m

hence, correct answer is 0.98 from the mass of 0.3 kg

Rotational motion
